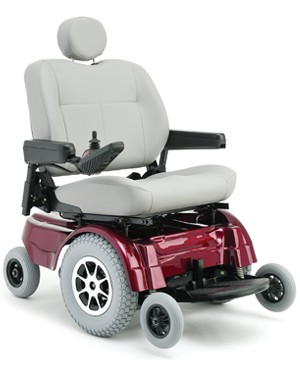

Jazzy 1170 XL
MSRP: 6345.00
Click Here To Order
Your Price: 4442.00
Click On Photo To EnLarge
|
The Jazzy 1170 XL is a stylish, high
performance power chair that combines excellent indoor maneuverability
with larger motors and a longer frame to allow for a 30% increase in
torque, a top speed of 6 mph and a 400 lbs Weight Capacity. The Jazzy 1170
XL comes standard with Active-Trac Suspension which provides for great
outdoor performance and rough terrain handling. The Jazzy 1170 XL is the
ultimate power chair for the active outdoor user who still requires
tight-quarter maneuverability. |
| Jazzy
1170 Features |
- Active-Trac Suspension for outstanding outdoor performance
Patented mid-wheel drive design provides outstanding maneuverability
Adjustable front anti-tips to meet your preferences and terrain
challenges
Low center of gravity design creates a very smooth and stable ride
16" knobby wheels and optimum weight distribution provide
superior traction
Speed range adjustable up to 6 mph
Adjustable seat height and angle
On-board battery charger
Mag wheels
|
 |
| 1170
Specifications |
| Drive Wheels |
16" pneumatic or solid |
| Rear Casters |
9" Pneumatic Articulating
or solid |
| Anti-Tip Wheels |
Adjustable Front, 8" Solid |
| Suspension |
Full suspension with Active-Trac
Suspension |
| Maximum Speed |
up to 6 MPH |
| Brakes |
"Intelligent Braking"
electronic regenerative, disk park brake |
| Ground Clearance |
4 inches |
| Turning Radius |
23 inches |
| Overall Length |
46 inches |
| Overall Width |
26.5 inches |
| Standard Seating |
Contoured Medium Back |
| Drive Train |
2-motor mid-wheel drive |
| Battery |
Two 12-volt, 70 amp Group 24 |
| Per-charge Range |
Up to 25 miles (varies with
passenger weight) |
| Battery Charger |
Onboard (standard) |
| Battery Weight |
48 lbs. (each) |
| Electronics |
Standard: 70 amp PG Pilot
Optional: 70 amp PG Remote Plus or Dynamic |
| Weight Capacity |
400 lbs. |
| Base Weight |
132 lbs. |
| Seat Weight |
33 lbs. |
| Colors |
Champagne, Gray, Candy Apple
Red, Viper Blue, Forest Green, Caribbean Teal, Purple Pizazz and
Black Onyx |
|
